7 Years Warranty

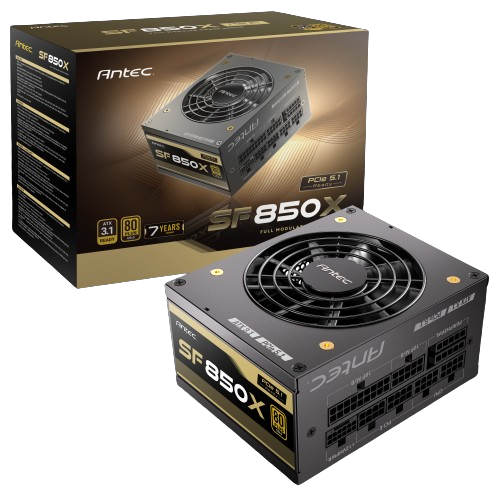

Model SF850X 80PLUS Gold
Type ATX 12V 3.1 (SFX 4.1)
Dimension 100 x 125 x 63.5mm (LWH)
Modular Full-Modular
Warranty 7 years
Input Voltage 100V-240V
Input Current 12A-6A
Input Frequency Range 60Hz-50Hz
PFC Active PFC
Power Good Signal 100-150ms
Protection OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Output Capacity 850W
Operation Temperature 0~40°C
Regulatory cTUVus / TUV / CB / RCM / CE / FCC
BIS / BSMI / KC / UKCA / ICES / CCC
Fan 92mm Silent Fan
Certifications 80 Plus Gold
Connector 1 x 24(20+4)pin MB
1 x 16(12+4)pin PCIE 5.1 12V-2×6
2 x 8(4+4)pin CPU
4 x 8(6+2)pin PCI-E
6 x SATA
2 x Molex
Unit Box Dimensions 236 x 184 x 106mm (L*W*H)
Shipping Box Dimensions 559 x 500 x 203mm (L*W*H)
Net Weight 1.785kg
Gross Weight 2.12kg
